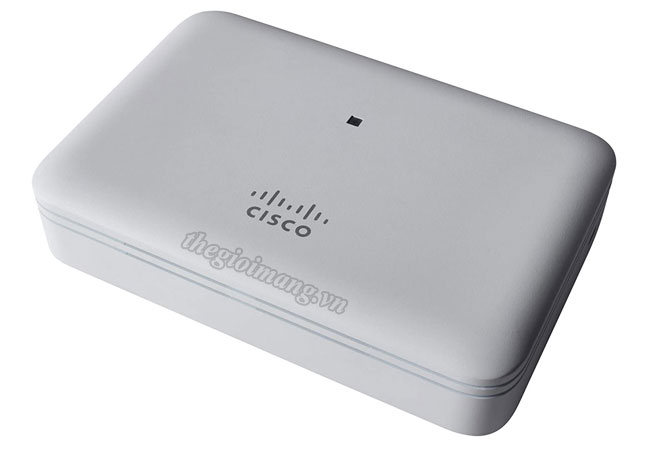

Thiết bị mở rộng sóng Cisco CBW141ACM-S-EU
| Model | CBW141ACM-S-EU |
| Product specifications | |
| Ethernet Ports | 4 (includes 1 PoE Output port) |
| PoE Output | 802.3af: 15.4W at port |
| Dimensions | Access point (without mounting bracket): 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7mm) |
| Power Input | 44 to 52V DC |
| Power Draw | 8.5W (no PoE out and no USB) |
| Weight | Access point without any other accessories: 13 oz (365 g) |
| Specifications and requirements | |
| Requirements | Requires a Cisco Business access point within the network for mesh connectivity |
| Authentication and security |
Wi-Fi Protected Access 2 and 3 (WPA2 and WPA3)
|
|
802.1X, RADIUS authentication, authorization, and accounting (AAA)
|
|
|
802.11r and 802.11i
|
|
| Maximum clients | Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point |
| 802.11ac |
2x2 MU-MIMO with two spatial streams, up to 867 Mbps
|
|
20-, 40-, and 80-MHz channels
|
|
|
Dynamic Frequency Selection (DFS)
|
|
| Ethernet ports | Refer to Table 2 |
| Data rates supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
| 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 5 and 4 Mbps | |
| 802.11n data rates on 2.4 GHz: 6.5 to 144 Mbps (MCS0-MCS15) | |
| 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) | |
| Available transmit power settings | Available transmit power settings |
| 5 GHz Up to 20 dBm | |
| Integrated antennas |
2.4 GHz, gain 2 dBi
|
| 5 GHz, gain 3 dBi | |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Environmental |
Operating
|
|
- Temperature: 32° to 104°F (0° to 50°C)
|
|
|
- Humidity: 10% to 90% (noncondensing)
|
|
|
- Maximum altitude: 9843 ft (3000 m) at 104°F (40°C)
|
|
|
Nonoperating (storage and transportation)
|
|
|
- Temperature: -22° to 158°F (-30° to 70°C)
|
|
|
- Humidity: 10% to 90% (noncondensing)
|
|
|
- Maximum altitude: 15,000 ft (4500 m) at 77°F (25°C)
|
|
| System |
512 MB DRAM, 128 MB flash
|
|
710-MHz quad-core processor
|
|
| PoE output | 802.3af: 15.4W at port |
| Physical security | Kensington lock slot |
| Warranty | Cisco Business limited lifetime hardware warranty |
| Free software updates, no service contract required | |
