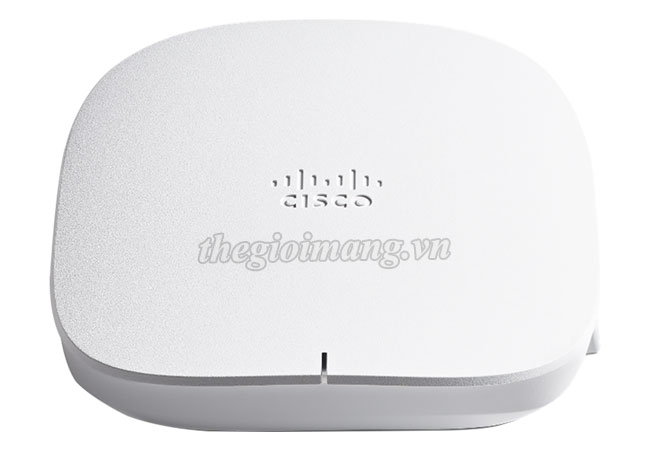

Cisco CBW150AX-S-UK Bộ phát Wi-Fi 6 Indoor Cisco Business 150AX
Cisco CBW150AX hỗ trợ chuẩn Wi-Fi 6 802.11ax và công nghệ Mesh cho phép mở rộng mạng Wi-Fi ở những nơi không có cáp mạng. CBW 150AX mang lại hiệu suất cao cho các kết nối không dây và trải nghiệm tối ưu cho người dùng cuối trong khi vẫn đáp ứng nhu cầu triển khai đơn giản bằng ứng dụng Cisco Business Mobile hoặc WebUI tích hợp.
Đặc điểm nổi bật của Cisco Business 150AX
Thông số kỹ thuật
Model | CBW150AX-S-UK |
Authentication and security | • Wi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication • 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA) • Segmentation via VLANs (up to 16) • 802.11r and 802.11i • Guest network can also authenticate against a Social Login account: Google and Facebook |
Maximum clients | • Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system |
Maximum # of Access Points | • 50 • Recommended up to 25 |
Max # of Mesh Extenders | • Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops |
Management Compatibility | • A group of access points and mesh extenders comprised of only CBW150AX and CBW151AXM devices may be managed as a single entity. • CBW150AX access points must not be installed on the same management network and CBW140AC or CBW240AC access points. • CBW150AX and CBW151AXM devices are supported by Cisco Business Dashboard versions 2.4.1 and higher. |
802.11ax | • 2x2 downlink MU-MIMO with two spatial streams • Uplink/downlink OFDMA • TWT • BSS coloring • MRC • 802.11ax beamforming • 20-, 40-, 80- channels • PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
802.11ac | • 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz • 20-, 40-, and 80-MHz channels • Dynamic Frequency Selection (DFS) |
Ethernet ports | • Authentication with 802.1X or MAC filtered • Dynamic VLAN or per port • Traffic locally switched or tunneled back to Master AP |
Data rates supported | • 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps • 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps • 802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) • 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) • 802.11ax data rates on 2.4 & 5GHz: 6.5 to 1200 Mbps (MCS0-MCS11) |
Integrated antenna | • 2.4GHz: peak gain 4dBi, internal antenna, omnidirectional in azimuth • 5GHz: peak gain 5dBi, internal antenna, omnidirectional in azimuth |
Available transmit power settings | • 2.4 GHz : Up to 20 dBm • 5 GHz : Up to 20 dBm |
Interfaces | • 1 x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE) |
Indicators | • Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
Dimensions (W x L x H) | • Access point (without mounting bracket): 5.92 x 5.92 x 1.57 in. (150.4 x 150.4 x 39.9 mm) |
Weight | • Access point without mounting bracket or any other accessories: 11.6 oz (330 g) |
Environmental | Operating: • Temperature: 32° to 104°F (0° to 40°C) • Humidity: 0% to 95% (noncondensing) • Maximum altitude: 9843 ft (3000 m) at 40°C Nonoperating (storage and transportation) • Temperature: –22° to 158°F (-30° to 70°C) • Humidity: 0% to 95% (noncondensing) • Maximum altitude: 15,000 ft (4570 m) at 25°C |
System | • 1 GB DRAM, 512MB flash • 1GHz quad core processor |
Powering options | • Use the Cisco Business passive PoE injector (included with select country-specific models) • 802.3af/at Ethernet switch; a Cisco Business Switch with PoE is recommended (CBS220/250/350 series); or Cisco Business PoE injector (CB-PWRINJ-XX) |
Power draw | • 9.2W (maximum, on PoE) |
Mounting and physical security | • Included with the access point: Mounting bracket and hardware |
CBW150AX-S-UK : Cisco Business 150AX Wi-Fi 6 Access Point, Ceiling Mounted
