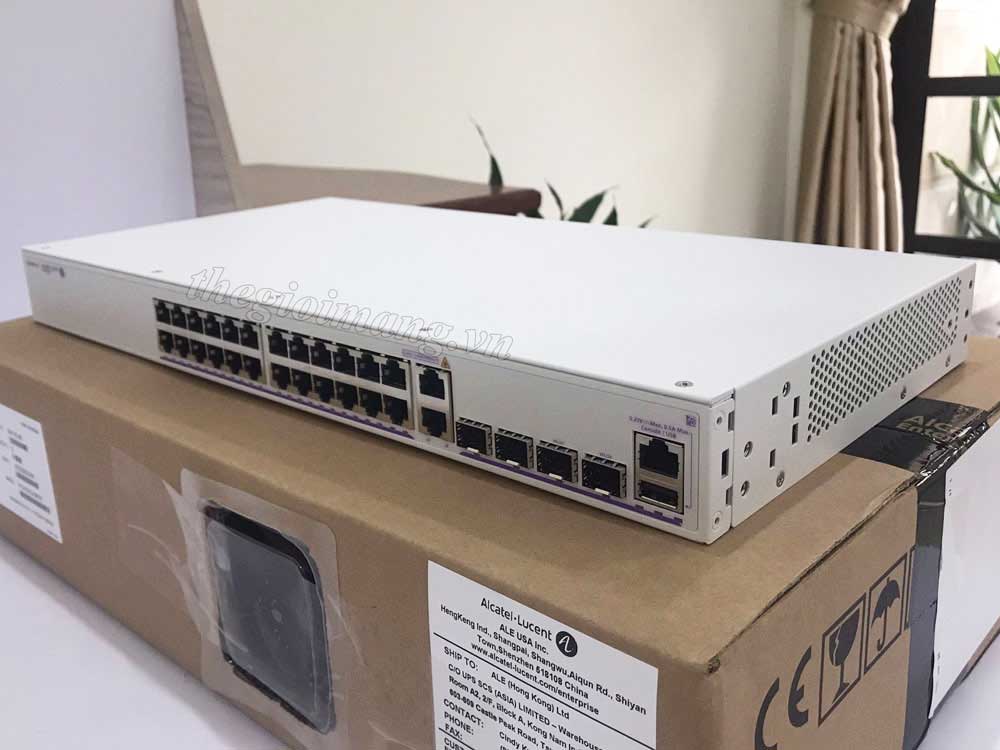

Alcatel-Lucent OmniSwitch OS6360-24 Stackable Switch :
Thiết bị chuyển mạch Switch Alcatel-Lucent OmniSwitch OS6360-24
| Model | OS6360-24 |
| Gigabit RJ-45 ports | 24 |
| Combo Gigabit RJ-45/SFP ports | 2 |
| Fixed SFP/SFP+ uplink or VFL ports | 2 x SFP+ |
| Console port | 1 |
| USB/OoB management port | 1 |
| Primary power | Internal |
| Backup power | N/A |
| Fans | 0 |
| CPU | 800MHz ARMv7 |
| File system flash | 1 GB |
| RAM | 1 GB |
| Packet buffers | 1.5MB |
| Performance aggregated | |
| Max switching ASIC capacity | 92 Gb/s |
| Switching capacity | 92 Gb/s |
| Throughput | 68.5 Mpps |
| 2x10GE VFL capacity | 40 Gb/s |
| System power consumption | - Idle : 21 W - 100% traffic all ports (max) : 24 W |
| System heat dissipation | 82 (BTU/h) |
| Power consumption w/PoE | N/A |
| Heat dissipation w/PoE | N/A |
| Power supply efficiency (max load) | 87,3% |
| Acoustics (dB) @27C* | 0 db(A) |
| # of fans | 0 |
| MTBF (hours) @ 25C | 2,595 k |
| Height | 4.4 cm |
| Width | 44 cm |
| Depth | 22 cm |
| Weight | 3.1 kg |
| Operating temperature | 0°C to 45°C |
| Storage temperature | -40°C to 85°C |
| Humidity (operating) | 5% to 95% non-condensing |
Transceivers and cables
| SFP-GIG-T | 1000Base-T Gigabit Ethernet Transceiver (SFP MSA). SFP works at 1000 Mb/s speed and full-duplex mode. |
| SFP-GIG-SX | 1000Base-SX Gigabit Ethernet optical transceiver (SFP MSA). |
| SFP-GIG-LX | 1000Base-LX Gigabit Ethernet optical transceiver (SFP MSA). |
| SFP-GIG-LH40 | 1000Base-LH Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 40 km on 9/125 µm SMF |
| SFP-GIG-LH70 | 1000Base-LH Gigabit Ethernet optical transceiver (SFP MSA). Typical reach of 70 km on 9/125 µm SMF |
| OS6360-CBL-60CM | 10 Gigabit direct attached uplink/stacking copper cable (60 cm, SFP+). |
| OS6360-CBL-C1M | 10 Gigabit direct attached uplink/stacking copper cable (1 m, SFP+) |
| OS6360-CBL-C3M | 10 Gigabit direct attached uplink/stacking copper cable (3 m, SFP+) |
| SFP-10G-SR | 10 Gigabit optical transceiver (SFP+). Supports multimode fiber over 850 nm wavelength (nominal) with an LC connector. Typical reach of 300 m |
| SFP-10G-LR | 10 Gigabit optical transceiver (SFP+). Supports single mode fiber with an LC connector. Typical reach of 10 Km. |
| SFP-10G-ER | 10 Gigabit optical transceiver (SFP+). Supports single-mode fiber over 1550 nm wavelength (nominal) with an LC connector. Typical reach of 40 km |
| SFP-10G-BX-D | 10 Gigabit optical transceiver (SFP+) with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1270 nm and receives 1330 nm optical signal. |
| SFP-10G-BX-U | 10 Gigabit optical transceiver (SFP+) with an LC type of interface. This bi-directional transceiver is designed for use over single mode fiber optic on a single strand link up to 10 km. Transmits 1330 nm and receives 1270 nm optical signal |
OS6360-24 : Fixed 1RU chassis 24 RJ-45 10/100/1G BaseT, 2 fixed RJ45/SFP combo (1G), 2 SFP+ (1G/10G) uplink or VFL ports. Fanless.
Data sheet Alcatel-Lucent OmniSwitch 6360 Stackable Gigabit Ethernet LAN Switch Family
