Planet GS-4210-8P2C : 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Gigabit Switch

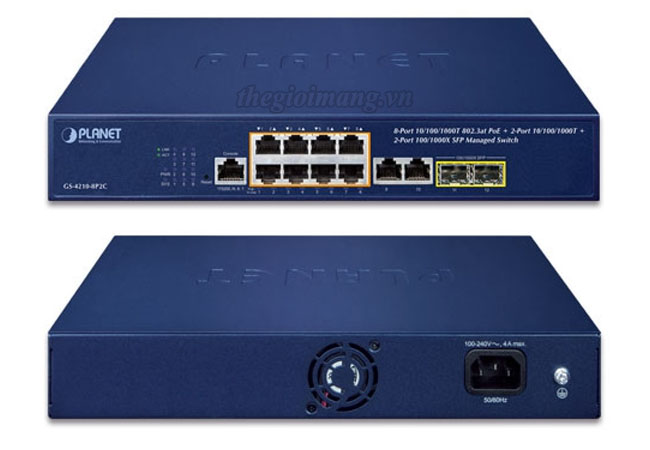

Thiết bị chuyển mạch Planet GS-4210-8P2C
Model | GS-4210-8P2C | |
---|---|---|
Hardware Specifications | ||
Copper Ports | 10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports | |
SFP Ports | 2 x 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM |
|
PoE Injector Port | 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 | |
Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) | |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
|
Dimensions (W x D x H) | 280 x 180 x 44 mm, 1U height | |
Weight | 1.7kg | |
Enclosure | Metal | |
Power Requirements | AC 100~240V, 50/60Hz, 4A, auto-sensing | |
Power Consumption/Dissipation | 154 watts (max.)/525BTU | |
ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
|
Fan | 1 fixed speed Fan | |
Switching Specifications | ||
Switch Architecture | Store-and-Forward | |
Switch Fabric | 24Gbps/non-blocking | |
Switch Throughput@64 bytes | 17.85Mpps | |
MAC Address Table | 8K entries | |
Shared Data Buffer | 4.1 megabits | |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
|
Jumbo Frame | 10K bytes | |
Management Functions | ||
Basic Management Interfaces | RS232 Console Web browser Telnet SNMP v1, v2c |
|
Secure Management Interfaces | SSHv2, TLS v1.2, SNMPv3 | |
System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System PLANET CloudViewer app |
|
Event Management | Remote/Local Syslog System log |
|
Environments & Standards | ||
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5~ 95% (non-condensing) |
|
Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|
Regulatory Compliance | FCC Part 15 Class A, CE |
Data sheet Planet GS-4210-8P2C
Software Funtions | GS-4210-8P2C 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Gigabit Switch |
|
---|---|---|
Power over Ethernet | ||
PoE Standard | IEEE 802.3af/802.3at PoE / PSE | |
PoE Power Supply Type | End-span | |
PoE Power Output | Per Port 54V DC, 32 watts (max.) | |
Power Pin Assignment | End-span: 1/2 (+), 3/6 (-) | |
PoE Power Budget | 120 watts (max.) | |
Number of 802.3af PDs | 7 units | |
Number of 802.3at PDs | 4 units | |
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
|
Layer 2 Functions | ||
Port Mirroring | TX/RX/both Many-to-1 monitor Up to 4 sessions |
|
VLAN | IEEE 802.1Q tagged-based VLAN IEEE 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Up to 256 VLAN groups, out of 4094 VLAN IDs |
|
Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports 2 trunk groups with 4 ports per trunk |
|
Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
|
IGMP Snooping | IPv4 IGMP (v2/v3) Snooping IPv4 IGMP Querier Up to 256 multicast groups |
|
MLD Snooping | IPv6 MLD (v1/v2) Snooping Up to 256 multicast groups |
|
QoS | 8 mapping ID to 8 level priority queues Port number 802.1p priority 802.1Q VLAN tag DSCP field in IP packet Traffic classification based, strict priority and WRR |
|
Ring | Supports ERPS, and complies with ITU-T G.8032 | |
Security Functions | ||
Access Control List | IPv4/IPv6 IP-based ACL MAC-based ACL |
|
Security | IP-MAC port binding MAC filter Static MAC address DHCP Snooping and DHCP Option82 DoS attack prevention ARP inspection IP source guard |
|
AAA | Built-in RADIUS client to co-operate with RADIUS server | |
Network Access Control | IEEE 802.1X – Port-based authentication RADIUS/TACACS+ user access authentication |
|
Management Functions | ||
Basic Management Interfaces | RS232 Console Web browser Telnet SNMP v1, v2c |
|
Secure Management Interfaces | SSHv2, TLS v1.2, SNMPv3 | |
System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System PLANET CloudViewer app |
|
Event Management | Remote/Local Syslog System log |
