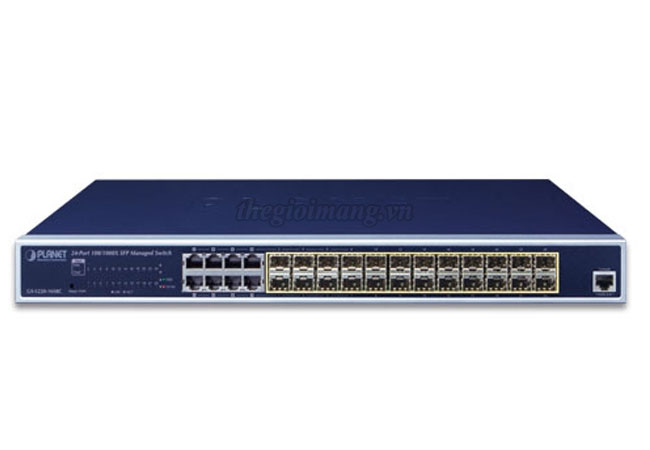

Planet GS-5220-16S8C: L2+ 24-port 100/1000X SFP + 8-port Shared TP Managed Switch
Thiết bị chuyển mạch Planet GS-5220-16S8C
| Model | GS-5220-16S8C |
|---|---|
| Hardware Specifications | |
| Copper Ports | 8 x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports, shared with Port-1~Port-8 |
| Khe cắm SFP / mini-GBIC | 24 x 100/1000Base-X dual-speed SFP interfaces |
| Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 48Gbps / non-blocking |
| Switch Throughput | 35.7Mpps@64Bytes |
| Address Table | 16K entries, automatic source address learning and ageing |
| Shared Data Buffer | 16M bits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: Khởi động lại > 5 sec: Mặc định ban đầu |
| Kích thước (W x D x H) | 440 x 200 x 44.5 mm, chiều cao 1U |
| Cân nặng | 2745g |
| Yêu cầu về nguồn điện | 100 ~ 240V AC, 50 / 60Hz |
| Mức tiêu thụ / tản nhiệt | 45 watt / 153 BTU (tối đa) |
| Bảo vệ ESD | 6KV DC |
| Environment & Standards | |
| Hoạt động | » Nhiệt độ: 0 ~ 50 độ C » Độ ẩm tương đối: 5 ~ 95% (không ngưng tụ) |
| Lưu trữ | » Nhiệt độ: -10 ~ 70 độ C » Độ ẩm tương đối: 5 ~ 95% (không ngưng tụ) |
| Tuân thủ tiêu chuẩn quy định | FCC Part 15 Class A, CE. |
Data sheet Planet GS-5220-16S8C
| Layer 2 Functions | |
| Port Configuration | Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable / enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX / RX / Both Many-to-1 monitor |
| VLAN | 802.1Q tagged based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP / Static Trunk 12 groups of 8-port trunk supported |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
| QoS | Traffic classification based, Strict priority and WRR 8-Level priority for switching - Port Number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IGMP Querier mode support |
| MLD Snooping | MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support |
| Access Control List | IP-based ACL / MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
| Layer 3 Functions | |
|---|---|
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 hardware Static Routing IPv6 hardware Static Routing |
| Management | |
| Basic Management Interfaces | Console / Telnet / Web browser / SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
