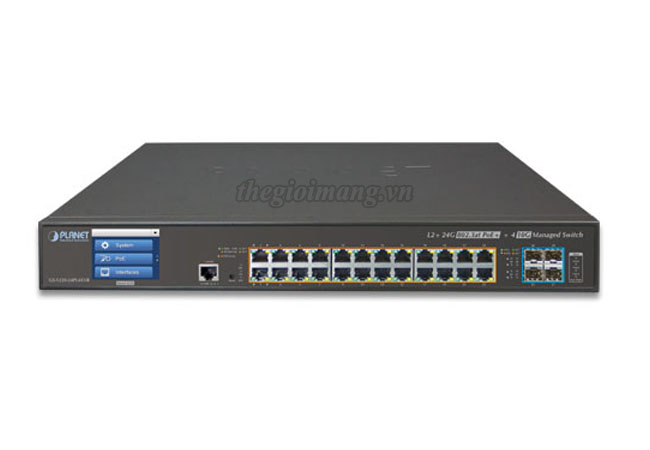

Planet GS-5220-24UP4XV: L3 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Switch with LCD Touch Screen (400W)
Thiết bị chuyển mạch Planet GS-5220-24UP4XV
Model | GS-5220-24UP4XV | |
---|---|---|
Hardware Specifications | ||
Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports | |
SFP+ Slots | 4 10GBASE-SR/LR SFP+ interfaces (Port-25 to Port-28) Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver |
|
Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) | |
Reset Buton | < 5 sec: System reboot > 5 sec: Factory default |
|
Dimensions (W x D x H) | 440 x 300 x 56 mm, 1.25U height | |
Weight | 5478g | |
Power Consumption | Max. 740 watts/ 2538.94 BTU | |
Power Requirements | AC 100~240V, 50/60Hz, 8A | |
ESD Protection | 6KV DC | |
Fan | 3 smart fans | |
Switching Specifications | ||
Switch Architecture | Store-and-Forward | |
Switch Fabric | 128Gbps/non-blocking | |
Throughput | 95.23Mpps@64Bytes | |
Address Table | 16K entries, automatic source address learning and aging | |
Shared Data Buffer | 32M bits | |
Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
|
Jumbo Frame | 10K bytes | |
Power over Ethernet | ||
PoE Standard | 802.3bt PoE++ PSE Backward compatible with IEEE 802.3af/802.3at PoE PSE |
|
PoE Power Supply Type | 802.3bt UPoE End-span Mid-span Force |
|
PoE Power Output | Per port 52V DC - 802.3bt Type-4 mode, Port-1 to Port-8: maximum 90 watts - 802.3bt Type-3 mode, Port-9 to Port-24: maximum 60 watts - UPoE mode, Port-1 to Port-8: maximum 95 watts - UPoE-mode, Port-9 to Port-24: maximum 72 watts - End-span mode: maximum 36 watts - Mid-span mode: maximum 36 watts - Force mode: maximum 60 watts |
|
Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
|
PoE Power Budget | 400 watts (max.) | |
Layer 3 Functions | ||
IP Interfaces | Max. 128 VLAN interfaces | |
Routing Table | Max. 128 routing entries | |
Routing Protocols | IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing |
|
Layer 2 Management Functions | ||
Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
|
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status | |
Port Mirroring | TX/RX/Both Many-to-1 monitor |
|
VLAN | IEEE 802.1Q tagged VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 4K VLAN groups, out of 4095 VLAN IDs |
|
Link Aggregation | IEEE 802.3ad LACP/static trunk 26 trunk groups with 4 ports per trunk |
|
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
|
QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet |
|
IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Up to 255 multicast groups |
|
MLD Snooping | IPv6 MLD (v1/v2) snooping IPv6 MLD querier mode support Up to 255 multicast groups |
|
Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
|
RING | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms |
|
Security Functions | ||
Access Control List | IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries |
|
Security | Port security IP source guard Dynamic ARP inspection Command line authority control based on user level |
|
AAA | RADIUS client TACACS+ client |
|
Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
|
Switch Management | ||
Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c | |
Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 | |
System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote syslog System log LLDP protocol NTP PLANET Smart Discovery Utility |
|
Event Management | Remote syslog Local system log SMTP |
|
ONVIF | ONVIF device discovery ONVIF device monitoring Floor Map |
|
Environments & Standards Conformance | ||
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|
Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|
Regulatory Compliance | FCC Part 15 Class A, CE |
Những tính năng chính Switch Planet GS-5220-24UP4XV
Physical Port
802.3bt Power over Ethernet
Layer 2 Features
Layer 3 Features
Quality of Service
Multicast
Security
Management
