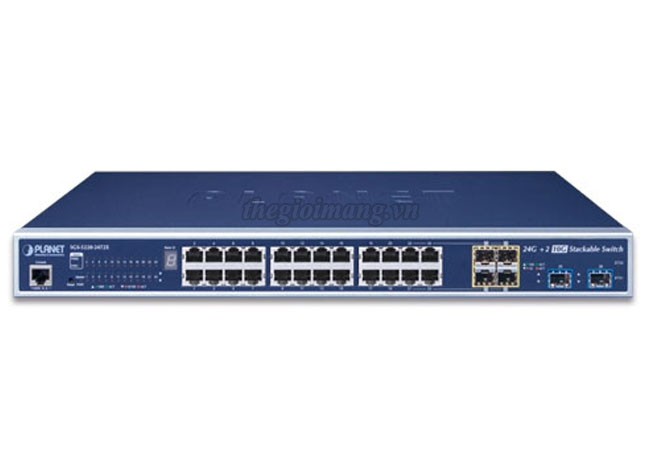

Planet SGS-5220-24T2X

Switch Planet SGS-5220-24T2X: L2+ 24-Port 10/100/1000T + 4-Port Shared SFP + 2-Port 10G SFP+ Managed Stackable Switch

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị chuyển mạch Planet SGS-5220-24T2X

Model	SGS-5220-24T2X
Hardware Specifications
Copper Ports	24 x 10/100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports
10/100/1000Mbps / SFP Combo Interfaces	4 x 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (Mini-GBIC) supports 100/1000Mbps Dual mode DDM, shared with Port-21 to Port-24
10Gbps Fiber Uplink Ports	2 x 1/10GBASE-SR/LR SFP+ slots
10Gbps Fiber Stackable Ports	2 x 10GBASE-SR/LR SFP+ slots
Console	1 x RJ45 serial port (115200, 8, N, 1)
Switch Fabric	128Gbps / non-blocking
Throughput	95.2Mpps@64Bytes
Address Table	32K entries, automatic source address learning and ageing
Shared Data Buffer	4.1megabits
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Jumbo Frame	9K bytes
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Power Requirements	100~240V AC, 50/60Hz, 2A
Power Consumption (Full Loading)	43 watts
ESD Protection	6KV DC
Dimensions (W x D x H)	440 x 200 x 44.5 mm, 1U height
Weight	2850g
Stacking Functions
Stacking Ports	2 SFP+ slots
Stacking Numbers	16
Stacking Bandwidth	40Gbps full duplex
Stack ID Display	7-Segment LED display (1~9, A~F, 0)
Stack Topology	Ring / Chain / Back-to-Back
Environments
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Regulatory Compliance	FCC Part 15 Class A, CE

Data sheet Planet SGS-5520-24T2X
L2+ 24-Port 10/100/1000T + 4-Port Shared SFP + 2-Port 10G SFP+ Managed Stackable Switch
NHỮNG TÍNH NĂNG CHÍNH
Physical Port 24-Port 10/100/1000Base-T RJ-45 copper 4 100/1000Base-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100Base-FX SFP 2 10GBase-SR/LR SFP+ slots, compatible with 1000Base-SX/LX/BX SFP 2 10GBase-SR/LR SFP+ stackable slots RJ-45 console interface for basic management and setup
Stacking Features Physical stacking up to 16 units, 384 Gigabit ports, 32 10 Gigabit ports Single IP address stack management Stacking architecture supports Chain and Ring mode Plug and Play connectivity Mirror across stack Link Aggregation groups spanning multiple switches in a stack Physical MAC address learning with MAC table synchronization across stack
Layer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm Control support Broadcast/Multicast/Unicast Supports VLAN IEEE 802.1Q tagged VLAN Up to 255 VLANs groups, out of 4094 VLAN IDs Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad- Private VLAN Edge (PVE) Protocol-based VLAN MAC-based VLAN Voice VLAN Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN (MSTP) BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 10 trunk groups, up to 16 ports per trunk group Up to 32Gbps bandwidth (full duplex mode) Provides port mirror (many-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops
Layer 3 IP Routing Features Supports maximum 128 static routes and route summarization
Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS TOS / DSCP / IP Precedence of IPv4/IPv6 packets IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing policies on the switch port DSCP remarking
Multicast Supports IPv4 IGMP Snooping v1, v2 and v3 Supports IPv6 MLD Snooping v1 and v2 Querier mode support IGMP Snooping port filtering MLD Snooping port filtering Multicast VLAN Registration (MVR) support
Security Authentication IEEE 802.1x Port-based / MAC-based network access authentication Built-in RADIUS client to co-operate with the RADIUS servers TACACS+ login users access authentication RADIUS / TACACS+ users access authentication Access Control List IP-based Access Control List (ACL) MAC-based Access Control List Source MAC / IP address binding DHCP Snooping to filter un-trusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks Auto DoS rule to defend DoS attack IP address access management to prevent unauthorized intruder
Management IPv4 and IPv6 dual stack management Switch Management Interfaces Web switch management Console/Telnet Command Line Interface SNMP v1, v2c and v3 switch management SSH/ SSL secure access IPv6 IP Address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP Reset button for system reboot or reset to factory default Dual Images DHCP Relay DHCP Option82 DHCP Server User Privilege levels control NTP (Network Time Protocol) Link Layer Discovery Protocol (LLDP) and LLDP-MED Network Diagnostic ICMPv6/ICMPv4 Remote Ping Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues SMTP / Syslog remote alarm Four RMON groups (history, statistics, alarms and events) SNMP trap for interface Linkup and Linkdown notification System Log PLANET Smart Discovery Utility for deployment management
