Mô tả sản phẩm

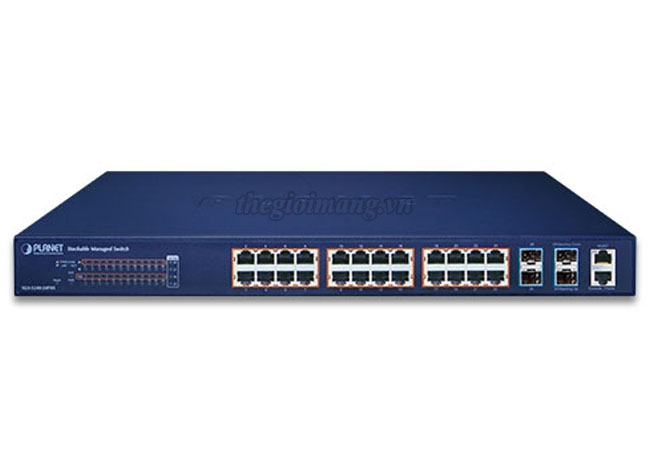

Thiết bị chuyển mạch Planet SGS-5240-24P4X

Model	SGS-5240-24P4X
Hardware Specifications
10/100/1000BASE-T RJ45 Ports	24
10GBASE-X SFP+ Slots	4 10GBASE-SR/LR SFP+ interfaces Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console	1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
CPU	ARM A9 800Mhz
RAM	512Mbytes
Flash Memory	64Mbytes
Dimension (W x D x H)	440 x 280 x 44 mm
Weight	4.1 kg
Power Consumption	432 watts/1474 BTU
Power Requirements - AC	AC 100~240V, 50/60Hz
Fan	2
Switching
Switch Architecture	Store-and-Forward
Switch Fabric	128Gbps/non-blocking
Switch Throughput	95.23Mpps
Address Table	16K MAC address table with auto learning function
ARP Table	1024
ACL Table	900
Shared Data Buffer	1.5MB
Jumbo Frame	9KB
Flow Control	Back pressure for half-duplex IEEE 802.3x pause frame for full-duplex
Power over Ethernet Specifications
PoE Standard	IEEE 802.3at Power over Ethernet Plus PSE Backward compatible with IEEE 802.3af PoE
PoE Power Supply Type	End-span
PoE Power Output	Per port 54V DC, maximum 30 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	370 watts (max.)
Environments & Standards
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Regulatory Compliance	FCC Part 15 Class A, CE

Xem thêm

Thông số kỹ thuật

Data sheet Planet SGS-5240-24P4X

Software Specification		SGS-5240-24P4X Layer 2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch
Layer 3 Functions
IP Interface		Max. 32 VLAN interfaces
Routing Table		IPv4 256 entries IPv6 128 entries
Routing Protocols		IPv4 hardware static routing IPv6 hardware static routing
Layer 2 Functions
Port Configuration		Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable Port loopback detect
Port Status		Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
Port Mirroring		TX/RX/Both Remote port mirror (RSPAN) Many-to-1 monitor
VLAN		IEEE 802.1Q tagged based VLAN, up to 4K VLAN groups IEEE 802.1ad Q-in-Q VLAN stacking/tunneling IEEE 802.1v Protocol-based VLAN Port-based VLAN MAC-based VLAN IP Subnet-based VLAN Voice VLAN GVRP for VLAN management, up to 256 VLAN
Spanning Tree Protocol		IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU Guard, BPDU filtering and BPDU transparent Root Guard STP-based loopback detection
Multicast		IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IGMP Filtering and IGMP Throttling IGMP Proxy reporting IGMP mroute-forward mode Up to 255 multicast groups IPv6 MLD v1/v2 snooping Up to 255 multicast groups Multicast VLAN Register (MVR), supports 5 multicast VLANs
Link Aggregation		IEEE 802.3ad Ling Aggregation Control Protocol (LACP) Static trunk link aggregation Supports 26 groups with 8 ports per trunk group Up to 80Gbps bandwidth (full duplex mode) Load Balance Algorithm: - Source IP/destination IP/Source + destination IP - Source MAC/destination MAC/Source + destination MAC
Storm Control		Broadcast/Multicast/Unicast storm control Rate: 64Kbpss-10,000Mbps
Bandwidth Control		Input/Output/Both Per port bandwidth control Gigabit port: 64Kbpss-1,000Mbps 10Gigabit port: 64Kbpss-10,000Mbps
QoS		8 priority queues on all switch ports Scheduling for priority queues - Weighted Round Robin (WRR) - Strict priority - Hybrid (DRR/WRR + strict) Traffic classification: - IEEE 802.1p CoS/DSCP/IP Precedence - VLAN ID - ACL - Policy-based ingress and egress QoS
Ring		ITUT G.8032 ERPS v1 and v2
Security Functions
Access Control List		Supports Standard and Expanded ACL - IP-based ACL - MAC-based ACL - ARP ACL - Time-based ACL ACL based on: - MAC Address - IPv4/IPv6 IP Address - Ethertype - Protocol-number/UDP - sport/dport - DSCP - 802.1p Priority Up to 900 entries
Security		Port security Supports static MAC + port binding Defend against DoS or TCP attacks DHCP Snooping, DHCP Option 82 IP source guard Dynamic ARP inspection Command line authority control based on user levels
AAA		RADIUS client TACACS+ client
Network Access Control		IEEE 802.1x port-based network access control MAC-based authentication Web authentication Local/RADIUS authentication
Management Functions
System Configuration		Console and Telnet Web browser SNMP v1, v2c
Secure Management Interfaces		IPv4/IPv6 SSHv2, SSLv3, SNMPv3 Maximum 8 sessions for SSH and telnet connection
System Management		IPv4 and IPv6 dual stack management SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups Firmware upgrade by HTTP/TFTP/FTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP/FTP protocol Supports dual images and multiple configuration files Supports IEEE 802.1ab LLDP protocol NTP/SNTP client RADIUS authentication for IPv4/IPv6 login user name and password Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Event Management		Remote Syslog, System log, SMTP
IP Clustering		16 members
IP Clustering Compatibility List		SGS-5240-24T4X SGS-5240-24P4X SGS-5240-20S4C4XR SGS-5240-48T4X
Hardware Stacking		6 members max. Last 2 10G SFP+ slots are functioned as Stacking Up and Down interfaces
