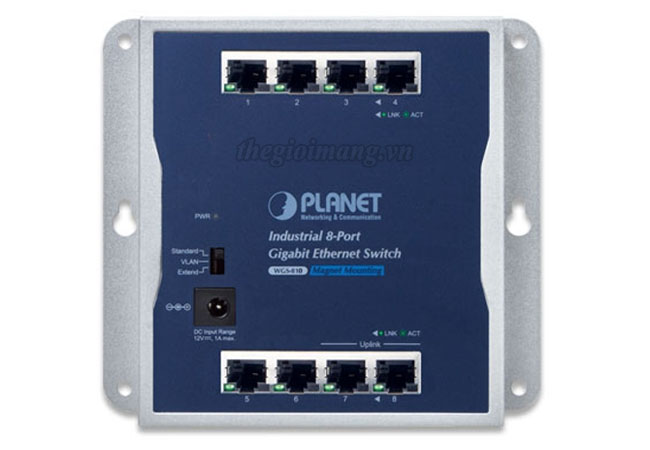

Planet WGS-810: Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch
Thiết bị chuyển mạch Công nghiệp Planet WGS-810
| Model | WGS-810 |
|---|---|
| Hardware Specifications | |
| Network Connector | 8-Port RJ45 for 10/100/1000BASE-T |
| Switch Architecture | Store and forward |
| MAC Address Table | 4K MAC address table with auto learning function |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64Bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| ESD Protection | 4KV DC |
| DIP Switch | Selectable operation modes: ■ Standard: Transmission distance of 100m ■ VLAN: Port-based VLAN ■ Extend: The transmission distance of 250m at speed of 10Mbps |
| Connector | DC power jack with 2.0mm central pole |
| Power Requirements | 12V DC, 1A (max.) |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 25 x 134 mm |
| Weight | 446g |
| Installation | Fixed wall mounting, magnetic wall mounting orand DIN-rail mounting |
| Environment & Standard | |
| Operating | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Regulation Compliance | FCC Part 15 Class A, CE |
Planet WGS-810
Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch
Physical Port:
Layer 2 Features:
Industrial Case / Installation
