DrayTek VigorAP 802: 11ac Dual-Band Wall-Plug Portable AP / Repeater. ● AC1200: Delivers 867 Mbps at 5GHz and 300 Mbps at 2.4GHz ● 64 Active Users: At Maximum, 32 Per Radio ● 4 SSIDs: At Maximum, 2 Per Radio ● 1x RJ-45 Gigabit Ethernet LAN.

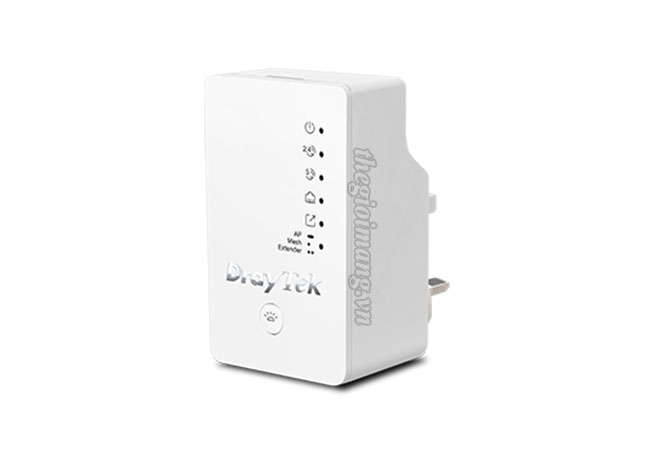

Thiết bị phát WiFi DrayTek VigorAP 802
|

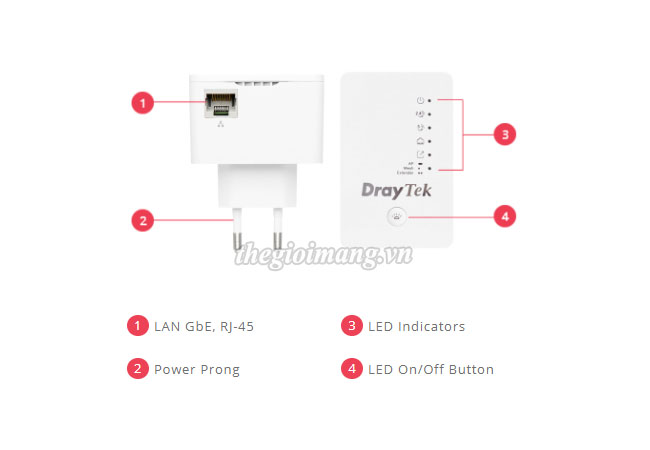

Interface
|
|
| LAN Port | 1x 10/100/1000M Base-T, RJ-45 |
| Antenna | - 2x Internal PiFA Dual-Band - Gain: 4.79 dBi for 5GHz, 3.35 dBi for 2.4GHz |
| Button | 1x LED On/Off |
|
Capacity
|
|
| 2.4G Peak Speed | 300 Mbps |
| 5G Peak Speed | 867 Mbps |
| Max. Number of Concurrent Active Clients | 64 (32 per band) |
|
WLAN
|
|
| 2.4GHz Standard | IEEE 802.11b/g/n |
| 5GHz Standard | IEEE 802.11a/n/ac |
| MIMO | 2x2 (2-stream) |
| Operating Mode | AP, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| Band Steering | ✔ |
| Max. Number of SSID | 4 (2 per band) |
| Bandwidth Limit per Client | ✔ |
| Client Number Limit | Per radio, Per SSID |
| Connection Time Control | ✔ |
|
Security
|
|
| Security Mode | WPA2, WPA2/WPA, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| MAC Address Filter | Up to 64 entries |
|
Application
|
|
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP Client | ✔ |
| Static IP | ✔ |
| MAC Clone | ✔ |
| 802.1q VLAN | ✔ |
| iOS Keep Alive | ✔ |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
|
Management
|
|
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorConnect, VigorAP Mesh Root |
| SNMP | v2, v2c, v3 |
| Managed by VigorConnect | ✔ |
| Managed by VigorACS | ✔ |
|
Physical
|
|
| Environment | Indoor |
| Mounting | Wall Plug |
| Power Supply | AC 100-240V @ 0.25A |
| Max. Power Consumption | 10.7 watts |
| Dimension (W x H x D) | 59mm x 91mm x 40mm (Power plug not included) |
| Weight | 130 g |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 10 to 90% non-condensing |
