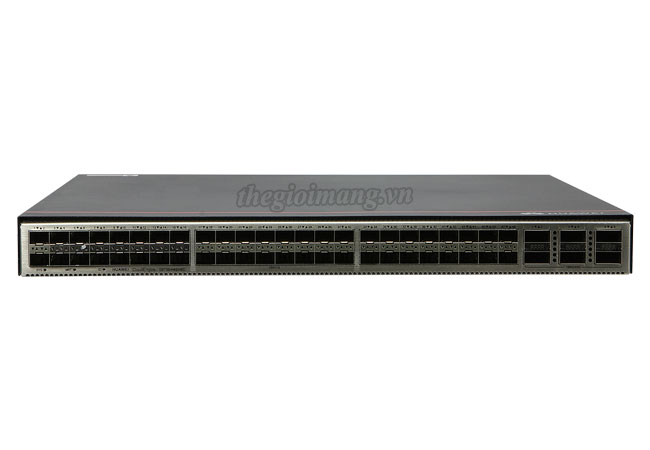

Switch Huawei CloudEngine S6730-H48Y6C-V2 :
Thiết bị chuyển mạch Switch Huawei CloudEngine S6730-H48Y6C-V2
| Model | CloudEngine S6730-H48Y6C-V2 |
| Fixed port | |
| GE port | • 48 |
| 10GE | • 48(10GE and 25GE auto-sensing) |
| 25GE port | • 48 |
| 40GE port | • 6 (40GE and 100GE auto-sensing) |
| 100GE port | • 6 |
| Management port | |
| ETH management port | • Supported |
| Console port (RJ45) | • Supported |
| USB port | • USB 2.0 |
| CPU | |
| Frequency | • 1.4 GHz |
| Cores | • 4 |
| Memory | |
| Memory (RAM) | • 4GB |
| Flash | • Hardware: 4 GB |
| Power supply system | |
| Power supply type | • 600 W AC Power Module • 1000 W DC Power Module |
| Rated voltage range | • AC input: 100~240V AC, 50/60 Hz; 200~240V AC, 50/60Hz • -48V DC input: -48V DC~-60V DC • 600W AC & 240V DC: 240V DC • HVDC input: 240V DC~380V DC |
| Maximum voltage range | • AC input: 90~290V AC, 45/65 Hz; • -48V DC input: -38.4V DC~-72V DC • 600W AC & 240V DC: 190~290V DC • HVDC input: 190 V DC~400V DC |
| Maximum input current | • AC 600W : 8A • DC 1000W -48V: 30A or DC 240V: 4A |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | • 226 W |
| Maximum power consumption (100% throughput, full speed of fans) | • 384 W |
| Heat dissipation system | |
| Heat dissipation mode | • Air-cooled heat dissipation and intelligent fan speed adjustment |
| Number of fan modules | • 4 |
| Airflow | • Air flows in from the left, right and front, and exhausts from the back |
| Environment parameters | |
| Long-term operating temperature | • 0-1800 m: -5°C to 45°C • 1800-5000 m: The operating temperature decreases 1°C for every 220 m increase in altitude. |
| Storage temperature | • -40°C to +70°C |
| Relative humidity | • 5% to 95%, noncondensing |
| Operating altitude | • 0-5000 m |
| Noise under normal temperature (sound power) | • < 67 dB(A) |
| Noise under high temperature (sound power) | • < 84 dB(A) |
| Noise under normal temperature (sound pressure) | • < 58 dB(A) |
| Surge protection specification (power port) | • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode • Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
| Reliability | |
| MTBF (year) | • 47.81 |
| MTTR (hour) | • 1.95 |
| Availability | • > 0.99999 |
| Physical specifications | |
| Chassis dimensions (H x W x D, mm) | • 43.6 mm x 442.0 mm x 420.0 mm |
| Chassis height | • 1U |
| Chassis weight (full configuration weight, including weight of packaging materials) | • 11.05kg |
S6730-H48Y6C-V2 : 48*25GE SFP28 ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28, without power module.
Data sheet Huawei CloudEngine S6730-H-V2 series 25GE switches
