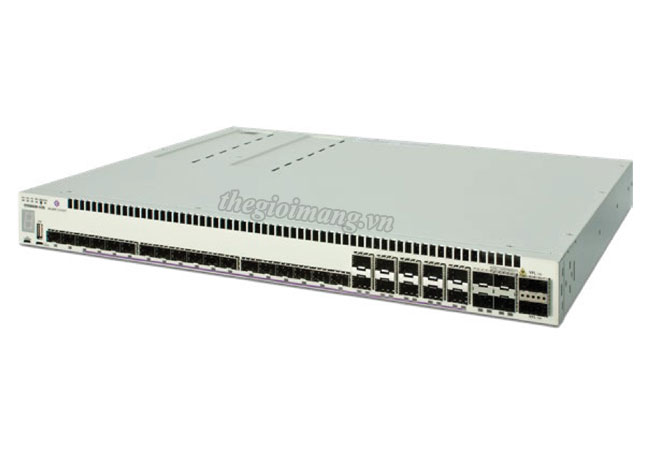

Thiết bị chuyển mạch Alcatel-Lucent OmniSwitch OS6860E-U28D
| Model | OS6860E-U28D |
| Gigabit copper and fiber ports | 28 100/1000 BaseX, SFP |
| Uplinks | 4 x 1/10G SFP+, MACsec |
| USB port | 1 |
| Out-of-band EMP port | 1 |
| RS-232 port | 1 |
| Console port (micro-USB) | 1 |
| Fans | 0 |
| Altitude | 13,000 ft |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity (operating and storage) | 5% to 95% non-condensing |
| Air flow | Front-to-back |
| Dimensions (H x W x D) | 4.4 cm x 44 cm x 35 cm 1.73 in x 17.32 in x 13.78 in |
| Max raw fabric capacity (Aggregated) | 224 Gb/s |
| Switching capacity (Aggregated) | 216 Gb/s |
| Throughput | 160.9 Mpps |
| File system flash | 2 GB |
| DRAM | 2 GB |
| VLANs | 4,000 |
| MAC addresses | 48 K |
| Max IPv4 routes | 64 K |
| Max IPv6 routes | 6 K |
| Jumbo frames | 9216 bytes |
| VFL ports capacity | 42 GB/s or 84 GB/s aggregate |
| Maximum number of units in a virtual chassis | 8 |
| Power consumption (idle) | 70.1W |
| Power consumption (full load) | 72.2W |
| Heat dissipation | 246.4 BTU/h |
| Acoustic noise (dB) @ 25°C | 42.4 |
| MTBF | 292,509 h |
| Weight (chassis and fan) | 4.58 kg (10.1 lb) |
| Weight (fully populated) | 5.26 kg (11.6 lb) |
OS6860E-U28D : Gigabit Ethernet L3 fixed configuration chassis in a 1U form factor with 28 100/1000 Base-X SFP ports, four fixed SFP+ (1G/10G) ports, USB, EMP, and two VFL/stacking ports. Includes a built-in co-processor for Enhanced network services. The bundle includes one DC power supply, user manuals access card, hardware for mounting in a 19” rack and a micro-USB-toUSB console adapter.
Data sheet Alcatel-Lucent OmniSwitch 6860 Stackable LAN switches
