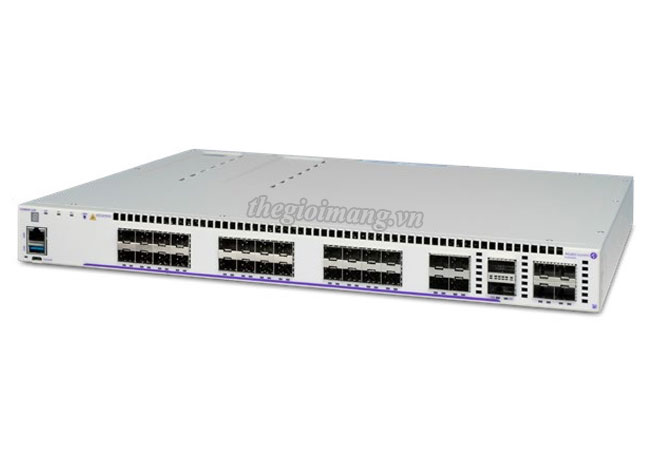

Thiết bị chuyển mạch Alcatel-Lucent OmniSwitch OS6860N-U28-D
| Model | OS6860N-U28-D |
| Gigabit copper and fiber ports | 24 x 100/1000 BaseX, SFP, MACsec |
| Uplinks | 4 x 1/10G SFP+, MACsec, 4 x 10/25G SFP28, MACsec |
| USB port | 1 |
| Out-of-band EMP port | 1 |
| RS-232 port | 1 |
| Console port (micro-USB) | 1 |
| Fans | 3 |
| Altitude | 13,000 ft |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity (operating and storage) | 5% to 95% non-condensing |
| Air flow | Front-to-back |
| Dimensions (H x W x D) | 4.4 cm x 44 cm x 35 cm 1.73 in x 17.32 in x 13.78 in |
| Max raw fabric capacity (Aggregated) | 960 Gb/s |
| Switching capacity (Aggregated) | 728 Gb/s |
| Throughput | 541.7 Mpps |
| File system flash | 16 GB |
| DRAM | 4 GB |
| VLANs | 4,000 |
| MAC addresses | 64 K |
| Max IPv4 routes | 144 K |
| Max IPv6 routes | 72 K |
| Jumbo frames | 9216 bytes |
| VFL ports capacity | 200 Gb/s or 400 Gb/s aggregate |
| Maximum number of units in a virtual chassis | 8 |
| Power consumption (idle) | 79W |
| Power consumption (full load) | 171W |
| Heat dissipation | 583.5 BTU/h |
| Acoustic noise (dB) @ 25°C | 52 |
| MTBF | 138,559 h |
| Weight (chassis and fan) | 4.50 kg (9.92 lb) |
| Weight (fully populated) | 4.99 kg (11.0 lb) |
OS6860N-U28-D : Fixed-configuration chassis in a 1U form factor with 24x100/1000 Base-X SFP ports, 4x 1G/10G SFP+ ports, four SFP28 (10G/25G) ports and 2 x 100G QSFP28 Virtual Chassis link ports. All ports are 256-bit MACSec capable. The bundle includes one system DC power supply, user manuals, access card, hardware for mounting in a 19” rack and a micro-USB-to-USB console adapter.
Data sheet Alcatel-Lucent OmniSwitch 6860 Stackable LAN switches
