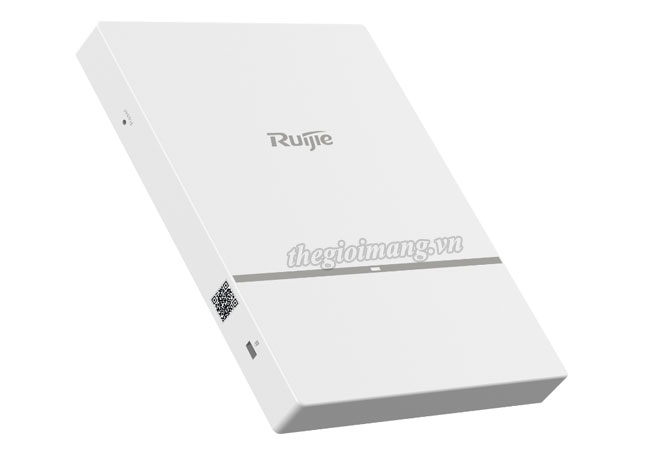

Ruijie RG-AP820-L(V2) Indoor Wi-Fi 6 Enterprise Access Point :
Thiết bị Wi-Fi 6 Indoor Access Point Ruijie RG-AP820-L(V2)
Model | Ruijie RG-AP820-L(V2) |
Hardware specifications | |
Radio | • Dual-radio dual-band: - Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO - Radio 2: 5G 11ax: 2x2 MIMO |
Protocol | • Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac |
Operating Bands | • 802.11b/g/n/ax: 2.4G ~ 2.483GHz • 802.11a/n/ac/ax: 5.150~5.350GHz, 5.47~5.725GHz, 5.725~5.850GHz (vary depending on different countries) |
Spatial Streams | • Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz |
Max Throughput | • Maximum throughput (5G+5G mode) per AP: 2.4Gbps - Radio1: 5G low band 1.2Gbps - Radio2: 5G high band 1.2Gbps • 2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps - Radio1: 2.4G 0.574Gbps - Radio2: 5G 1.2Gbps |
Modulation | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps • MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM) |
Receiver Sensitivity | • 11b: -96dBm (1Mbps), -93dBm (5Mbps), -89dBm (11Mbps) • 11a/g: -91dBm (6Mbps), -85dBm (24Mbps), -80dBm (36Mbps), -74dBm (54Mbps) • 11n: -90dBm (MCS0), -70dBm (MCS7), -89dBm (MCS8), -68dBm (MCS15) • 11ac HT20: -88dBm (MCS0), -63dBm (MCS9) • 11ac HT40: -85dBm (MCS0), -60dBm (MCS9) • 11ac HT80: -82dBm (MCS0), -57dBm (MCS9) • 11ax HT80: -82dBm (MCS0), -57dBm (MCS9), -52dBm (MCS11) |
Antenna | • Integrated antenna design |
Antenna Gain | • 2.4G: 3dBi • 5G: 3dBi |
Service Ports | • 1 10/100/1000M Ethernet ports, PoE In |
Management Port | • 1 console port |
Reset Button | • Support |
Anti-theft Lock | • Support |
LED Indicator | • 1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access) |
Transmit Power | • ≤100mw (20dBm) (vary depending on different countries) |
Adjustable Power | • 1dBm |
Power Supply | • Local power supply (DC 48V/1A) (DC Power adapters should be purchased from third-party vendors separately if needed.) • PoE (802.3af) – full spectrum operation |
Power Consumption | • <12.95W |
Physical Specifications | |
Temperature | • Operating Temperature: -10°C to 50°C • Storage Temperature: -40°C to 70°C |
Humidity | • Operating Humidity: 5% to 95% (non-condensing) • Storage Humidity: 5% to 95% (non-condensing) |
Installation Mode | • Ceiling/wall-mountable |
Dimensions (W x D x H) | • 153mm ×193mm x26mm (Height of the AP only, excluding the mount kit) |
Weight | • ≤0.5kg (include mount kit) |
IP Rating | • IP41 |
Certifications and Compliance | |
Wi-Fi Alliance | • Wi-Fi CERTIFIED™ a, b, g, n, ac • Wi-Fi CERTIFIED 6™ • WPA3™-Enterprise, Personal • Wi-Fi Enhanced Open™ • Wi-Fi Agile Multiband™ • WMM® |
Safety Standard | • GB4943, EN/IEC 62368-1 |
EMC Standard | • GB9254, EN301 489 |
Radio Standard | • SRRC, EN300 328, EN301 893 |
Software Specifications | |
WLAN | |
Maximum clients per AP | • 1024 |
BSSID capacity | • Up to 32 |
SSID hiding | • Support |
5G Priority (Band Steering) | • Support |
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | • Support |
Remote Intelligent Perception Technology (RIPT) | • Support |
Intelligent device recognition technology | • Support |
Intelligent load balancing based on the number of users or traffic | • Support |
STA control | • SSID/radio-based |
Bandwidth control | • STA/SSID/AP-based bandwidth control |
Data encryption | • WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3, WEP (64/128 bits) |
PSK and web authentication | • Support |
PPSK authentication (For Employee) | • Support (require wireless controller) |
802.1x authentication | • Support |
PEAP authentication | • Support |
Data frame filtering | • Whitelist, static/dynamic blacklist |
User isolation | • Support |
Rogue AP detection and countermeasure | • Support |
Dynamic ACL assignment | • Support |
RADIUS | • Support |
CPU Protection Policy (CPP) | • Support |
Network Foundation Protection Policy (NFPP) | • Support |
IP | |
IPv4 and IPv6 address | • Support |
Multicast routing | • Multicast to unicast conversion |
DHCP service | • DHCP Snooping, Option 82, Server, Client |
Management and Maintenance | |
Supported wireless LAN controllers | • Ruijie WS Series Wireless Controller • Ruijie MACC-Base Software Controller • Ruijie Cloud (Public Cloud) |
Management protocol | • Telnet, SSH, TFTP, Web |
Wireless Intelligent AI Optimization Service (WIS) | • Support |
SNMP | • SNMPV1,V2c,V3 |
LLDP | • LLDP, LLDP-MED, LLDP-POE |
Syslog / Debug | • Support |
FAT/FIT/MACC mode switching | • Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management |
RG-AP820-L(V2) : Wi-Fi 6 (802.11ax) indoor wireless access point, selectable dual-band (5G+5G or 2.4G+5G), up to 4 total spatial streams and maximum 2.4Gbps wireless throughput, 1 10/100/1000BASE-T uplink port, integrated with BLE, support PoE and local power supply; Bundled with Ruijie Cloud Service life time license
