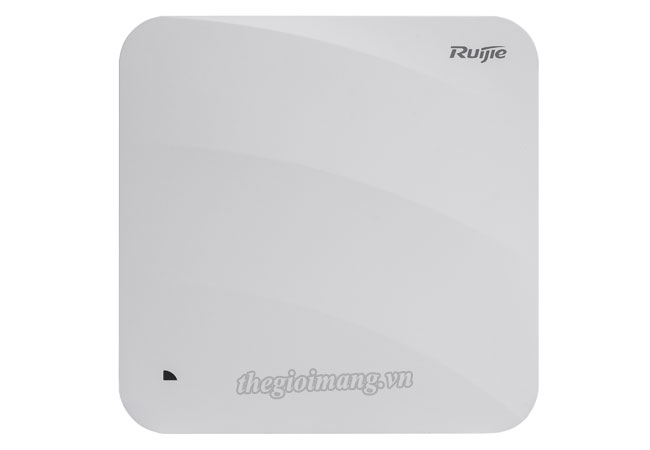

Ruijie RG-AP820-L(V3) Indoor Wi-Fi 6 AX3000 Multi-Gigabit SME Access Point :
Thiết bị Wi-Fi 6 Indoor AX3000 Multi-Gigabit Access Point Ruijie RG-AP820-L(V3)
Model | Ruijie RG-AP820-L(V3) |
Interfaces | |
Interfaces | • 1 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af/at) • Full Spectrum Operation in IEEE 802.3af Mode • 1 1G/2.5G SFP Port |
Management Port | • 1 RJ45 Console Port |
LED Indicator | • 1 LED Indicator |
Reset Button | • Support |
Radio Specifications | |
Radio | • Dual-radio dual-band: - Radio1: 2.4GHz 11ax, 2×2 MIMO - Radio2: 5GHz 11ax, 2×2 MIMO |
Operating Band | • Radio1: - 802.11b/g/n/ax, 2.4GHz, 2.483GHz, HE40 • Radio2: - 802.11a/n/ac/ax, 5.150GHz, 5.350GHz, HE80/HE160 - 802.11a/n/ac, 5.470GHz, 5.725GHz, 5.725GHz, 5.850GHz, HE80 Note: vary depending on different countries |
Max Throughput | • Radio1: 2.4GHz, 0.574Gbps • Radio2: 5GHz, 2.402Gbps • Maximum throughput per AP: 2.4GHz+5GHz, 2.976Gbps |
Antenna Type | • Integrated Omnidirectional |
Antenna Gain | • 2.4GHz: 2dBi • 5GHz: 2dBi |
Transmit Power | • 20dBm Note: vary depending on different countries |
Adjustable Power | • 1dBm |
Modulation | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps • MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and1024QAM OFDMA |
Receiver Sensitivity | • 11b: -96dBm (1Mbps), -93dBm (5Mbps), -89dBm (11Mbps) • 11a/g: -91dBm (6Mbps), -85dBm (24Mbps), -80dBm (36Mbps), -74dBm (54Mbps) • 11n: -90dBm@MCS0, -70dBm@MCS7, -89dBm@MCS8, -68dBm@MCS15 • 11ac: HT20: -88dBm (MCS0), -63dBm (MCS9) • 11ac: HT40: -85dBm (MCS0), -60dBm (MCS9) • 11ac: HT80: -82dBm (MCS0), -57dBm (MCS9) • 11ax: HE80: -82dBm (MCS0), -57dBm (MCS9), -52dBm (MCS11) • 11ax: 160MHz: -77dBm (MCS0),-50dBm (MCS11) |
Software Specifications | |
WLAN | • Maximum Recommended Clients: 120 (For General Usage) • Maximum Recommended Clients: 64 (For HD Video) • SSID Hiding: Support • 5G Priority (Band Steering): Support • Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID: Support • Remote Intelligent Perception Technology (RIPT): Support • Intelligent Device Recognition Technology: Support • Intelligent Load Balancing Based on the Number of Users or Traffic: Support • STA Limit Control: SSID/Radio based • Bandwidth Control: STA/SSID/AP-based |
Security | • Support PSK and Web authentication • Data Encryption: WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3, WEP (64/128bits) • PPSK authentication: Support • 802.1X authentication: Support • PEAP authentication: Support • Data Frame Filtering: Allowlist, Static/Dynamic Blocklist • User Isolation: Support • Rogue AP Detection and Countermeasure: Support • Dynamic ACL Assignment: Support • RADIUS: Support • CPU Protection Policy (CPP) Support • Network Foundation Protection Policy (NFPP): Support |
IP | • IPv4: Support Static and DHCP IP Address • Support Multicast to Unicast Conversion • DHCP Service: Support DHCP Snooping, Option 82, Server, Client • Support PPPoE client • Support IPsec VPN • Support FTP ALG/DNS ALG |
Operation & Management | • Support Wireless LAN Controllers: • Ruijie RG-WS Series Wireless Controller • Ruijie Cloud (Public Cloud) • Ruijie Private Cloud • Management Protocol: Telnet, SSH, TFTP, FTP, Web • Wireless Intelligent AI Optimization Service (WIS): Support • SNMP: Support V1, V2c, V3 • Syslog / Debug: Support • FAT/FIT/Cloud Managed Mode Firmware: Support FAT (Standalone) or FIT (WS Controller) or Cloud • Managed (Ruijie Public/Private Cloud) Management |
Physical Specifications | |
Dimensions (W × D × H) | • 220mm×220mm×49mm |
Weight | • Device: 0.6kg • Mounting Kit: 0.2kg |
Installation | • Ceiling / Wall |
Anti-theft Lock | • Support |
Power | |
Power Supply | • Local Power Supply (DC 48V/0.6A) Note: DC power adapters should be purchased separately from third-party vendors if needed. • PoE (IEEE 802.3af Standard) - Full Spectrum Operation |
Power Consumption | • 12.95W |
Environment | |
Temperature | • Operating Temperature: -10°C~50°C • Storage Temperature: -40°C~70°C |
Humidity | • Operating Humidity: 5%~95% (non-condensing) • Storage Temperature: 5%~95% (non-condensing) |
IP Rating | • IP41 |
Safety Standard | • GB 4943.1-2011, IEC 62368-1 |
EMC Standard | • EN 300386, GB 19286-2003, GB 17618-1998 |
RG-AP820-L(V3) : Wi-Fi 6 (802.11ax) indoor wireless access point, dual-radio, dual-band, up to 4 spatial streams and maximum of 2.97Gbps wireless throughput, 1 10/100/1000M BASE-T uplink port and 1 1G/2.5G SFP uplink port, support PoE and local power supply; Bundled with Ruijie Cloud Service lifetime license
Data sheet Ruijie RG-AP820-L(V3) Wi-Fi 6 AX3000 Multi-Gigabit SME Access Point
